perfume filling machine equipment-spray filling machine-Tianjing factory perfume filler

Filling machine case

Customized perfume spray filling machine equipment

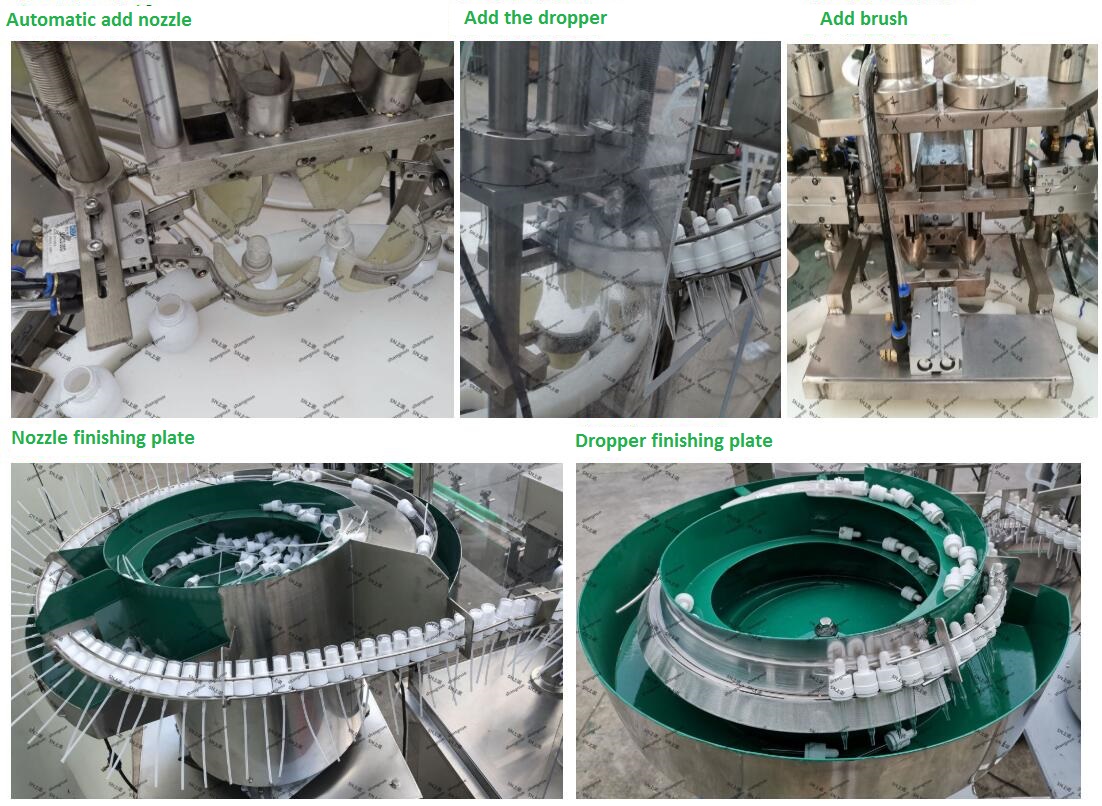

Perfume is a liquid that combines essential oils, fixatives, and alcohol or ethyl acetate to produce a long-lasting and pleasing odor.The perfume filling equipment provided by Changsha Shangnuo Machinery is a combination of filling, adding nozzle/dropper, spinning/rolling cap and bottling, with compact and flexible structure, which can be used by a single machine and form an automatic production line.Metering pump and filling number can be customized according to the production requirements, we can achieve for you fully automatic add to the bottle mouth!According to your specific products to customize the nozzle, drip irrigation, nail hair brush mold.

Standard perfume filling machine main technical parameters:

Model	SN-PZ4-1-1	SN-PZ8-2-2
Filing head number	4	8
Filling volume	1-500ml(customized)	1-500ml(customized)
Produce Capacity	15-40 bottles/min	35-80 bottles/min
Filling accuracy	≤ ±1%（according to filling material）
Pass rate	≥ 98%	≥ 98%
Power supply	1 Ph. AC220V, 50/60Hz	1 Ph. AC220V, 50/60Hz
Total power	1.5 KW	1.8KW
Net weight	500kg	650kg
Overall dimension	L2200×W1500×H1600mm	L2500×W2000×H1600mm
